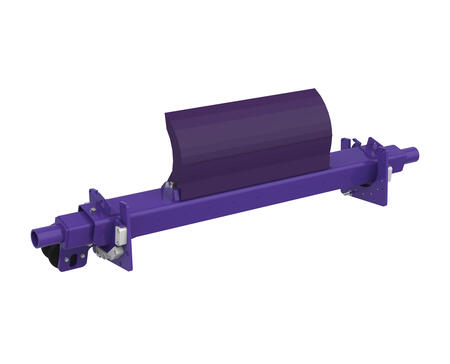

MHCP-P-60-FC-P-2-M/S
Ordering Number:MHCP-P-60-FC-P-2-M/SItem Code:118109
Add To My List
My List allows you to create a list of needs to forward to a distributor
Images are representative and may not match the specific item code you are viewing.
View additional information, instruction manuals and more at the links below.
Specifications
use imperialuse metric
Belt Width (in.)60
Belt Width (mm)1500
Blade MaterialPolyurethane (proprietary blend for abrasion resistance and long wear)
Maximum Conveyor Span (in.)77
Maximum Conveyor Span (mm)1925
CEMA RatingClass 5
Maximum Belt Speed (FPM)1200
Maximum Belt Speed (M/sec)6
Temperature Range (C)-35° to 82°
Temperature Range (F)-30° to 180°
Cleaner MaterialMild Steel Powdercoat
Blades Required9
Blade ConfigurationSegmented
Usable Blade Wear Length (in.)8
Usable Blade Wear Length (mm)200
TensionerFlexChange Precleaner Air Tensioner (F-PAT)
Pole Length (in.)100
Pole Length (mm)2545
Pole Diameter (in.)2 7/8
Pole Diameter (mm)73
Horizontal Clearance Required (in.)16 3/8
Horizontal Clearance Required (mm)415
Vertical Clearance Required (in.)21 7/8
Vertical Clearance Required (mm)555
Weight (kg)139.6
Weight (lbs)307.8
NOTE: Product availability and lead times vary by region. Contact your local customer service team for more information.
